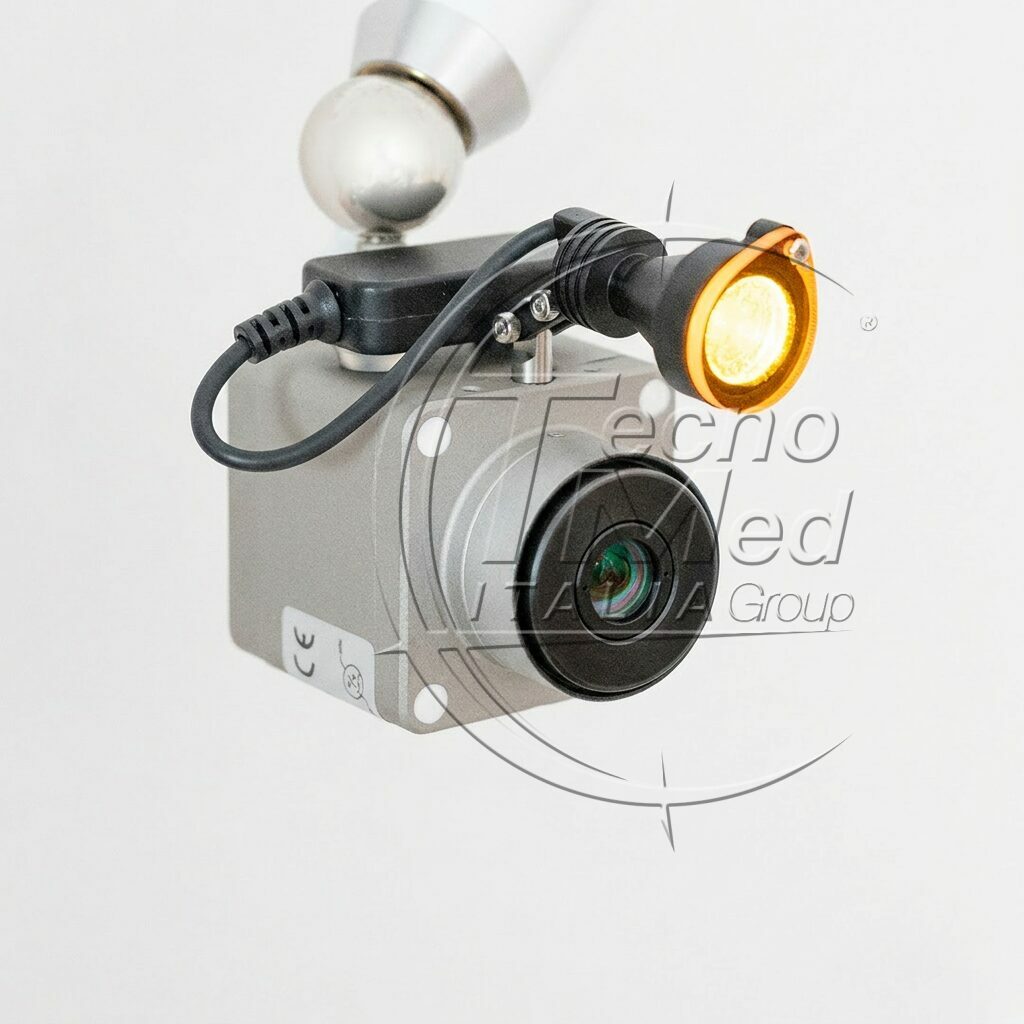

OKKIO HDMI 4K 16 mm with LED light is a Tecnomed Italia 4K HDMI medical camera with a 16 mm lens, featuring a Sony IMX377 sensor, f/8 optics and MagnoCam software, supplied as standard. The 16 mm configuration combines 4K imaging, up to 25× zoom and integrated illumination. It provides a single camera and lighting solution for viewing and documenting the clinical field in practice and during teaching.
Designed for recording and documentation across medical and surgical specialties, OKKIO also supports dental treatment documentation and clinical case presentations. In the dental practice it is used as an extraoral camera, recording the operating field from outside the mouth alongside intraoral cameras.
4K imaging and up to 25× zoom
Capture images at resolutions up to 3840 × 2160 pixels. The camera provides 2.5× optical zoom and up to 25× digital zoom, for both an overview of the operating field and closer views of the details you need to document. Focus is adjusted manually.
Adjustable working distance: 200–1200 mm
Adjust the working distance to suit your setup and frame the area you need to record.
Articulated arm, stand or tripod mounting
A magnetic attachment secures the camera to the dedicated articulated arm. The standard 1/4″ camera mount also accommodates a stand or tripod, giving you flexibility when setting up your workstation.
Integrated 24,000 lux LED illumination
The LED light provides a circular spot. Adjust the intensity to suit the procedure and recording conditions.
HDMI live view and MagnoCam documentation
Connect the HDMI output directly to a compatible monitor for live viewing. With the included MagnoCam software for Windows, you can view live video, capture still images and save recordings to the patient gallery. Keep photos, videos and annotations together in the patient’s imaging record, and export or synchronise the archive as needed. An included TWAIN driver allows images to be acquired directly within compatible practice management software.
MagnoCam also provides Side-by-Side viewing for compatible 3D headsets and monitors.
Use recorded images to explain findings to patients and discuss cases with colleagues. For teaching or remote case discussions, share content through the streaming and video conferencing applications on your PC.
OKKIO HDMI 4K technical specifications
| Product code |
FK900D-1680HDL |
| Sensor |
SONY IMX377 |
| Resolution |
2160p / 1080p / 720p at multiple frame rates |
| Dimensions |
50 × 50 × 50 mm |
| Lens |
16 mm UHD f/8 (200–1200 mm) |
| Working distance |
Adjustable from 200 to 1200 mm |
| Focus |
Manual |
| Zoom |
2.5× optical, up to 25× digital |
| Mounting |
Articulated arm or 1/4″ mount |
| Microphone |
Yes |
| Connection |
HDMI |
| Power supply |
12 V DC |
| Certification |
MDR 2017/745 Class I |
| LED light |
24,000 lux LED light, circular spot, adjustable intensity |
| Included software |
MagnoCam |
