Jaw, complete, diameter 45 mm, dental white

GA459010 – Fixing clamp for monitor arm on 45mm diameter medical pole.

Main features

• Vertical pole mounting

• Internal cable routing

• Clamping system with 2 × M8 screws

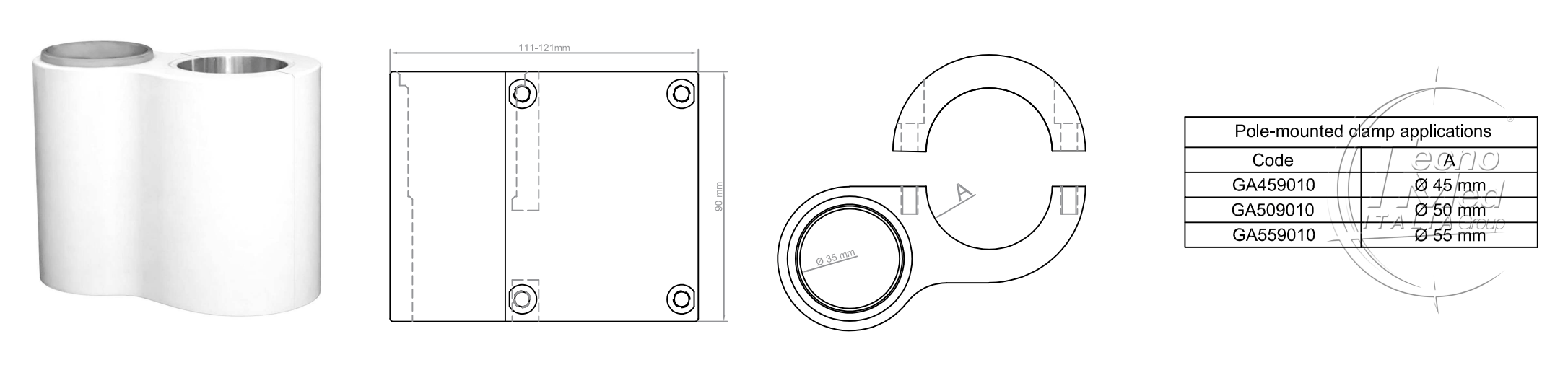

Technical features

• Compatible with Ø45mm poles

• Monitor arm insertion diameter: Ø35mm

• Dimensions (L × H): 111 × 90mm

• Material: aluminium

• Colour: dental white

• Certification: 2001/95/EC

• Warranty: 36 months

Applications

• Dental and podiatry treatment units with Ø45mm lamp poles

• Equipped poles with Ø45mm diameter

Configuration note
The fixing clamp for 45mm medical pole can be combined with Tecnomed monitor arms or equivalent monitor arms featuring a Ø35mm spigot.
