LED dental operating light Esalux with adjustable illumination from 8,000 to 40,000 lux, dedicated composite mode (20,000 lux) and touchless control. Designed for dental units and available for ceiling, wall or floor stand installation. Note: price refers to code DE6.22C (unit-mounted version).
The Esalux dental operating light is designed to provide precise and natural illumination of the operating field during clinical procedures.
With 6 high-efficiency LED sources, a dedicated composite mode and a touchless sensor, Esalux ensures optimal visibility, improved hygiene and ease of use in dental practices. Compatible with all dental units, it can be installed on dental units, ceiling, wall or floor stand, adapting to different clinical configurations.
Key advantages

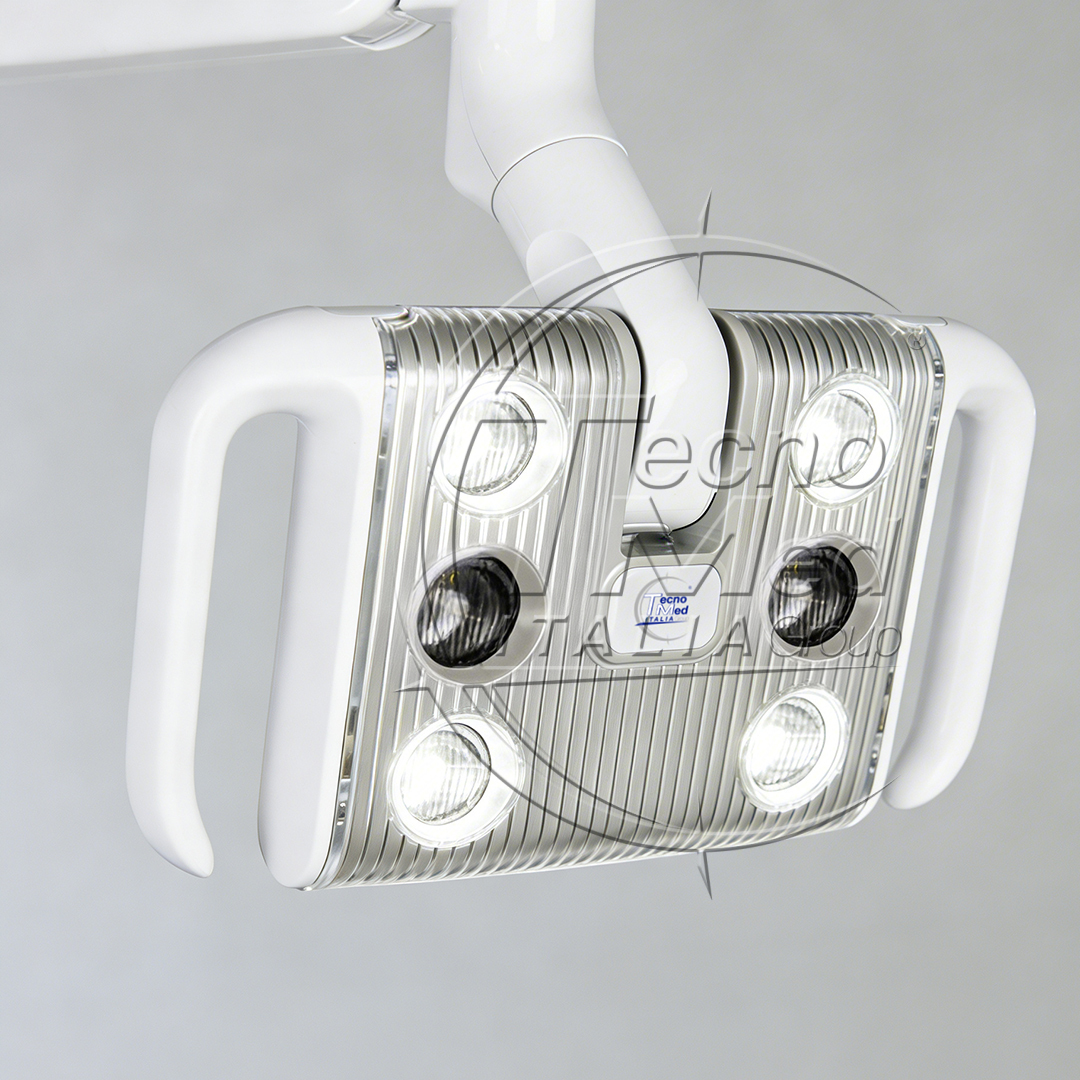

High-precision LED illumination
6 high-efficiency LEDs deliver uniform light distribution with a 100 × 200 mm light spot.
Adjustable light intensity
Illumination adjustable from 8,000 to 40,000 lux to suit different clinical procedures.

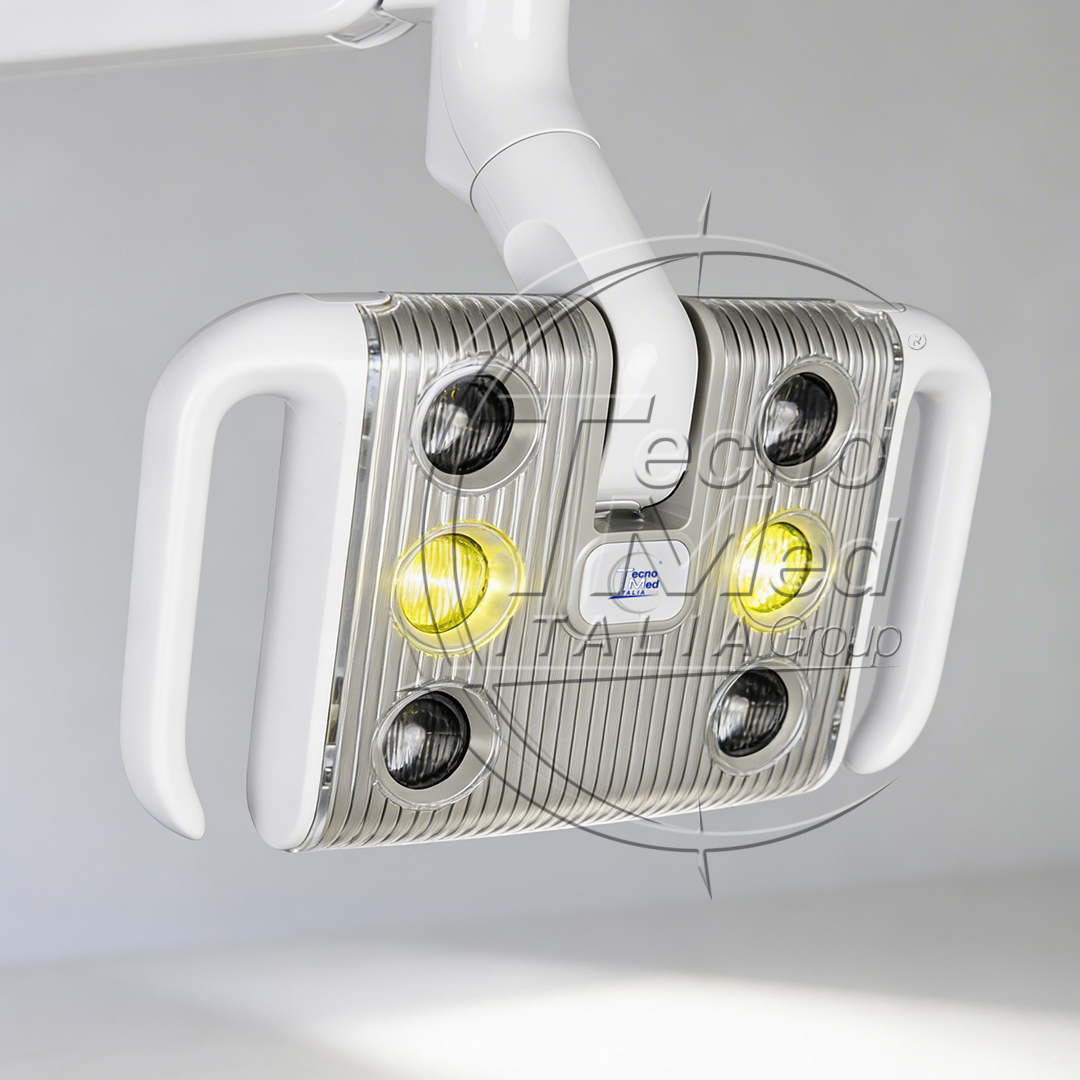

Dedicated composite mode
Specific mode with 20,000 lux and filtered LEDs designed to reduce premature polymerisation of composite materials.

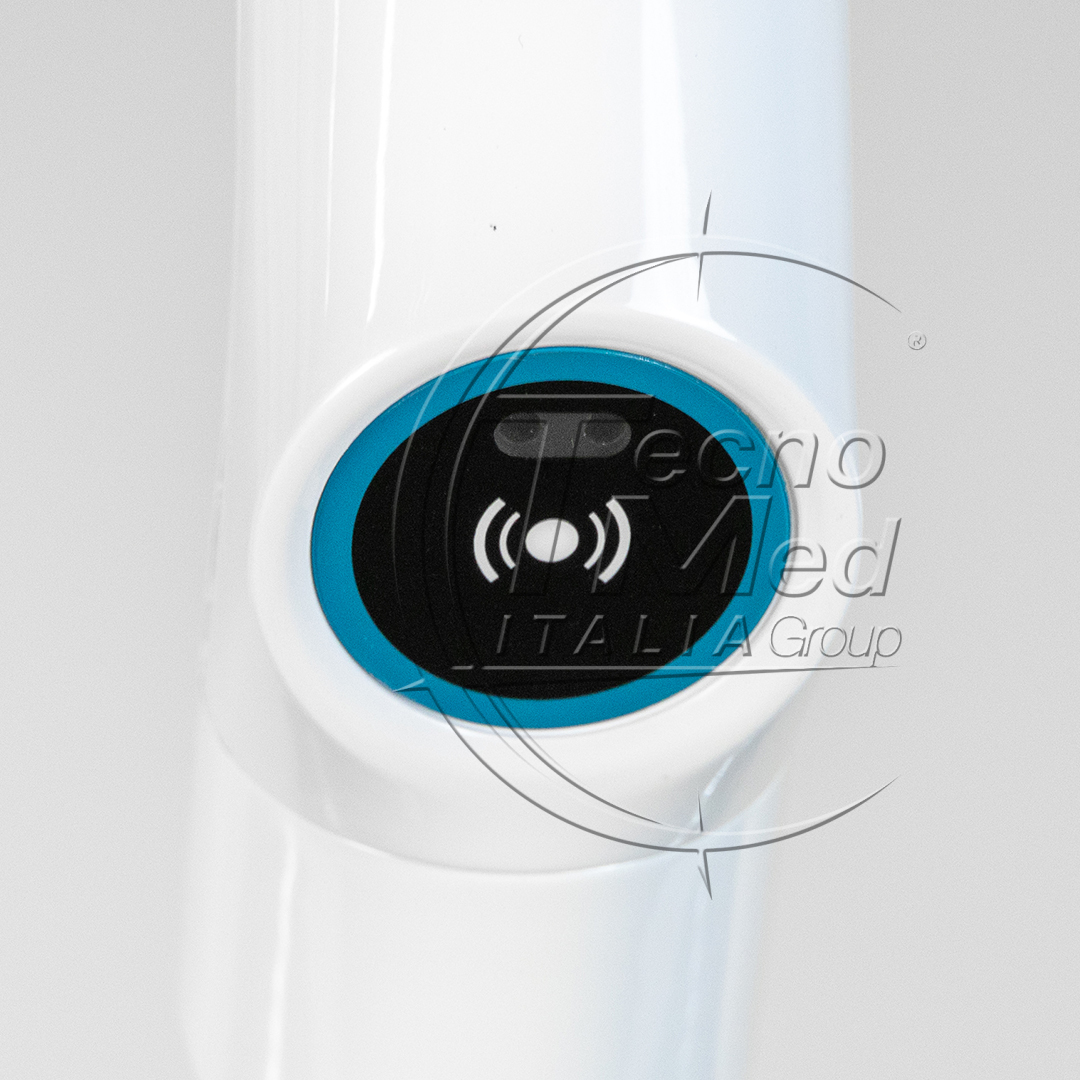

Touchless control
Switch on/off, adjust light intensity and select operating modes without contact, improving hygiene standards.
Removable and autoclavable handles
Designed for easy sterilisation and safe daily clinical use.
Freedom of movement
The Esalux lamp head allows precise positioning of the light.
• head rotation up to 280°
• vertical movement up to 116°
• lateral rotation up to 95°
Technical specifications
Specification
Value
Light source
4 white LEDs + 2 filtered LEDs
Light spot size
100 × 200 mm
Illumination
adjustable from 8,000 to 40,000 lux
Composite mode
20,000 lux
Colour temperature
5000K ±10%
Colour rendering index (CRI)
≥90
Light control
non-touch sensor
Power supply
AC 24V
Power consumption
<25VA
Weight
1.76 kg
Installation
Available for installation on dental units, ceiling, wall or floor stand, adapting to different clinical requirements.
WITH DENTAL UNIT ADAPTER
CEILING MOUNTED
WALL MOUNTED
FLOOR STAND
CUSTOM CONFIGURATIONS
The lamp can be installed on the most common dental units thanks to the standard Ø 35 mm pin, with compatibility options for 18 mm and 40 mm diameters. For ceiling installations, the pole length can be selected according to the room height.
Note: the displayed price refers exclusively to code DE6.22C, version with dental unit adapter.
